Lesson 5 - Guided Project: ETL on Kubernetes

Welcome to the Guided Project#

This project runs Module 7 end to end, from a completely clean namespace: CityFlow’s real ETL job, translated to Kubernetes objects (Lesson 1), given measured resource limits (Lesson 2), debuggable with the tools this module taught (Lesson 3), and packaged with a ConfigMap and proper logging (Lesson 4) - all four lessons, together, on the real January 2024 trip data, verified three independent ways.

By the end of this project, you will be able to:

• Bring up a complete, multi-object Kubernetes data pipeline - PVC, Deployment, Service, ConfigMap, Job - from nothing, in the right order.
• Verify a real Job’s result three independent ways: its own logs, a direct query against the database it wrote to, and the Kubernetes Dashboard.
• Tear down an entire guided project’s resources in a handful of commands and confirm the cluster is genuinely clean afterward.
• Recognize this exact object shape as the one every later real Kubernetes data job in production will roughly follow.

The full manifest set#

Five files, each one this module already built and explained - assembled here as the complete, real pipeline:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: cityflow-db-pvc
  namespace: cityflow
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 200Mi

apiVersion: apps/v1
kind: Deployment
metadata:
  name: cityflow-db
  namespace: cityflow
spec:
  replicas: 1
  selector:
    matchLabels:
      app: cityflow-db
  template:
    metadata:
      labels:
        app: cityflow-db
    spec:
      containers:
        - name: db
          image: postgres:16-alpine
          env:
            - name: POSTGRES_PASSWORD
              value: "cityflow"
            - name: POSTGRES_DB
              value: "cityflow"
          ports:
            - containerPort: 5432
          resources:
            requests:
              cpu: "100m"
              memory: "128Mi"
            limits:
              cpu: "500m"
              memory: "256Mi"
          volumeMounts:
            - name: pgdata
              mountPath: /var/lib/postgresql/data
          readinessProbe:
            exec:
              command: ["pg_isready", "-U", "postgres", "-d", "cityflow"]
            initialDelaySeconds: 2
            periodSeconds: 2
      volumes:
        - name: pgdata
          persistentVolumeClaim:
            claimName: cityflow-db-pvc

apiVersion: v1
kind: Service
metadata:
  name: cityflow-db-svc
  namespace: cityflow
spec:
  selector:
    app: cityflow-db
  ports:
    - port: 5432
      targetPort: 5432

apiVersion: v1
kind: ConfigMap
metadata:
  name: cityflow-etl-config
  namespace: cityflow
data:
  DATA_URL: "https://d37ci6vzurychx.cloudfront.net/trip-data/yellow_tripdata_2024-01.parquet"
  WINDOW_START: "2024-01-01"
  WINDOW_END: "2024-02-01"

apiVersion: batch/v1
kind: Job
metadata:
  name: cityflow-etl-job
  namespace: cityflow
spec:
  backoffLimit: 2
  template:
    spec:
      restartPolicy: Never
      initContainers:
        - name: wait-for-db
          image: postgres:16-alpine
          command:
            - sh
            - -c
            - |
              until pg_isready -h cityflow-db-svc -U postgres -d cityflow; do
                echo "cityflow-db-svc not ready yet, retrying in 2s"
                sleep 2
              done
      containers:
        - name: etl
          image: cityflow-etl-k8s:1.1
          imagePullPolicy: IfNotPresent
          envFrom:
            - configMapRef:
                name: cityflow-etl-config
          env:
            - name: DB_HOST
              value: "cityflow-db-svc"
          resources:
            requests:
              cpu: "250m"
              memory: "128Mi"
            limits:
              cpu: "500m"
              memory: "256Mi"

Every field in every one of these five objects was introduced, explained, and run for real somewhere in Modules 5-7. Nothing here is new; this project is entirely about correctly composing what you already have.

Bring the whole pipeline up, from nothing#

kubectl create namespace cityflow
kubectl apply -f configmap.yaml
kubectl apply -f pvc.yaml
kubectl apply -f deployment.yaml
kubectl apply -f service.yaml
kubectl wait --for=condition=Available deployment/cityflow-db -n cityflow --timeout=60s
kubectl apply -f job.yaml
kubectl wait --for=condition=Complete job/cityflow-etl-job -n cityflow --timeout=90s
kubectl get jobs -n cityflow
kubectl get pods -n cityflow

namespace/cityflow created
configmap/cityflow-etl-config created
persistentvolumeclaim/cityflow-db-pvc created
deployment.apps/cityflow-db created
service/cityflow-db-svc created
deployment.apps/cityflow-db condition met
job.batch/cityflow-etl-job created
job.batch/cityflow-etl-job condition met
NAME               STATUS     COMPLETIONS   DURATION   AGE
cityflow-etl-job   Complete   1/1           16s        16s
NAME                           READY   STATUS      RESTARTS   AGE
cityflow-db-55548fd9f4-mrsmx   1/1     Running     0          22s
cityflow-etl-job-4wtvb         0/1     Completed   0          16s

Postgres came up, passed its readiness probe, and only then did the ETL Job’s initContainer find it ready with nothing to wait for - one Complete Job, one Running database, from a completely empty namespace, in under 30 seconds.

Verification 1: the job’s own logs#

kubectl logs -n cityflow -l job-name=cityflow-etl-job -c etl

[cityflow-etl] starting - DATA_URL=https://d37ci6vzurychx.cloudfront.net/trip-data/yellow_tripdata_2024-01.parquet WINDOW=2024-01-01..2024-02-01 DB_HOST=cityflow-db-svc
[cityflow-etl] no file at /data/trips.parquet - nothing mounted, fetching https://d37ci6vzurychx.cloudfront.net/trip-data/yellow_tripdata_2024-01.parquet
[cityflow-etl] fetched real data to /tmp/trips.parquet
[cityflow-etl] CityFlow zone-hour ETL - Kubernetes
[cityflow-etl] -------------------------------------
[cityflow-etl] source rows (on disk):       2,964,624
[cityflow-etl] zone-hour buckets:           77,530
[cityflow-etl] trips kept:                  2,964,606
[cityflow-etl] quarantined (out-of-window): 18
[cityflow-etl] total revenue:               $79,455,941.50
[cityflow-etl] busiest zone-hour:           zone 161 at 2024-01-24T18, 726 trips
[cityflow-etl] report written to Postgres: zone_hour_report
[cityflow-etl] elapsed seconds:             11.64
[cityflow-etl] ETL completed successfully

The job’s first line confirms exactly what it was configured to do - the real ConfigMap values, echoed back - before a single row is processed. Then the real result: 77,530 zone-hour buckets, 2,964,606 trips kept, 18 quarantined, $79,455,941.50 total revenue, busiest zone-hour zone 161 at 2024-01-24T18 with 726 trips.

Verification 2: an independent query against Postgres itself#

kubectl exec -n cityflow deploy/cityflow-db -- psql -U postgres -d cityflow -c \
  "SELECT COUNT(*) AS buckets, SUM(trips) AS total_trips, ROUND(SUM(revenue),2) AS total_revenue FROM zone_hour_report;"

 buckets | total_trips | total_revenue
---------+-------------+---------------
   77530 |     2964606 |   79455941.50
(1 row)

Identical to the job’s own log, queried from a completely separate command against the database directly - not trusting the job’s own printed output alone, the same discipline Module 4 Lesson 4 and Module 6 Lesson 5 both applied to their own results.

This is the same real January 2024 number set every module in this course anchors to when its scope is one real month rather than the full quarter: Module 3’s original bare docker run, Module 4’s Compose stack, and this module’s Lesson 1 translation all produced this exact same 77,530 / 2,964,606 / $79,455,941.50 - five completely different ways of running the identical real logic against the identical real data, five identical answers.

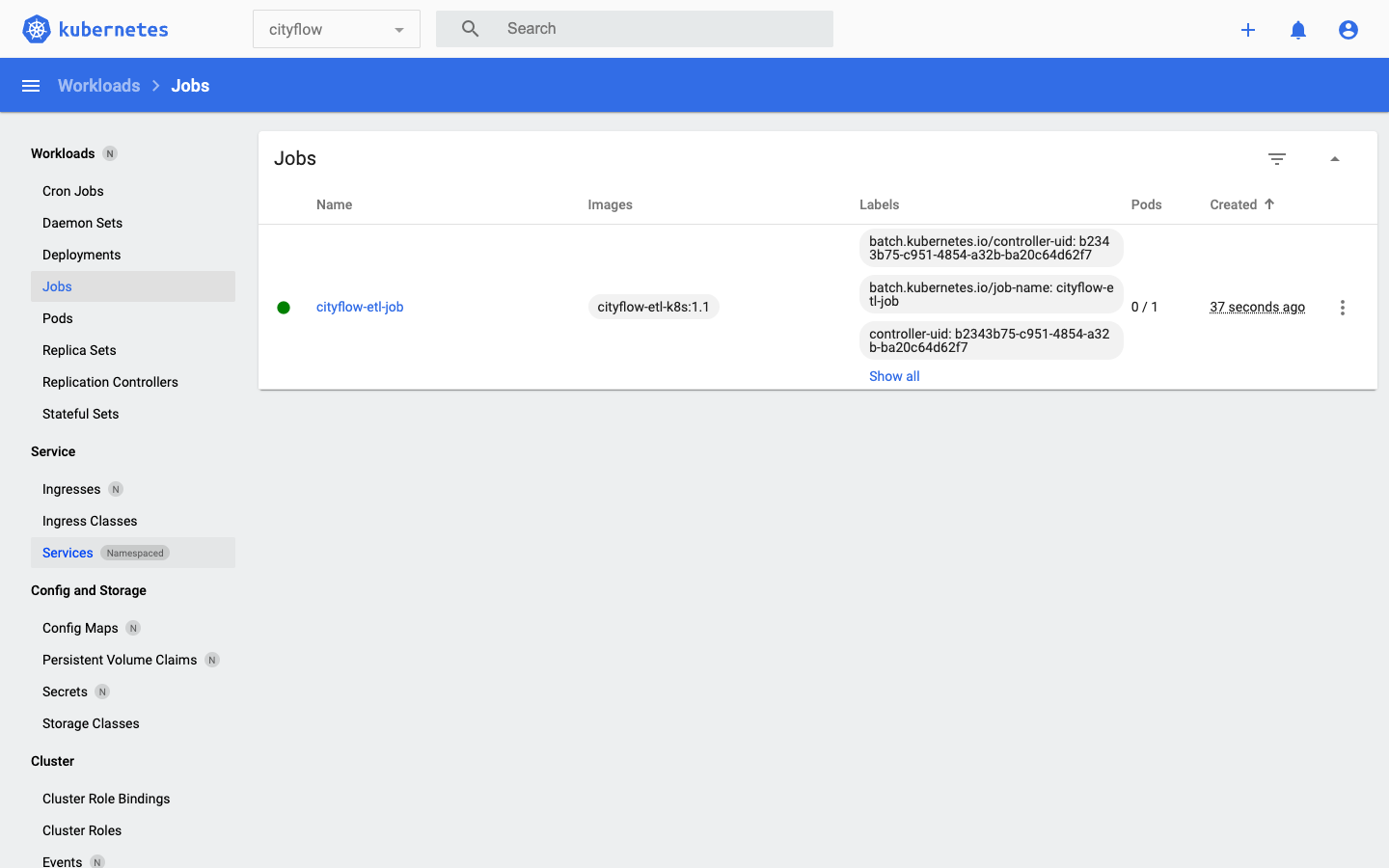

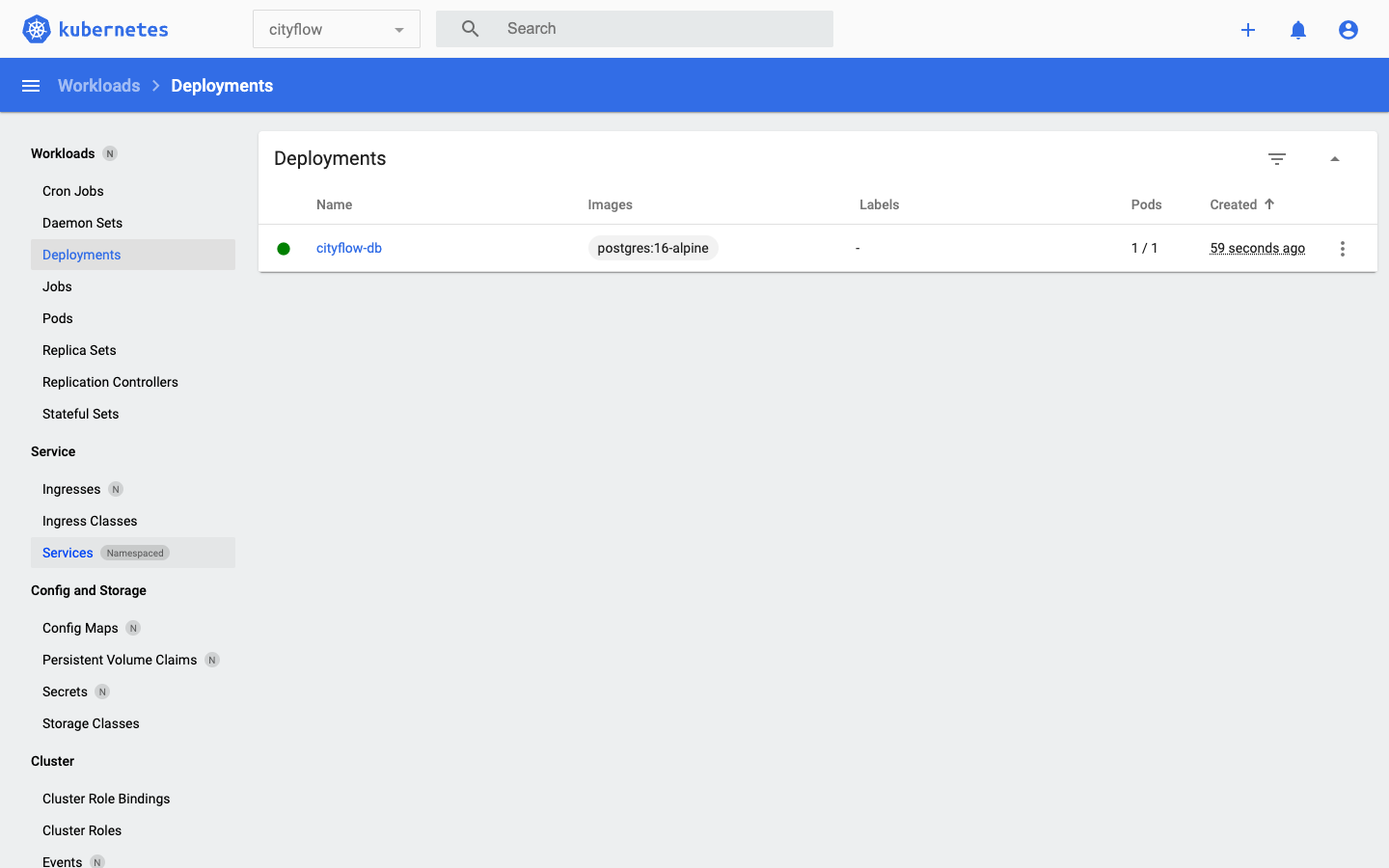

Verification 3: the Kubernetes Dashboard, independently#

Three independent confirmations of the same real result: the job’s own log, a direct database query, and a visual Dashboard check - none of them trusting the others, all of them agreeing.

Tear it all down#

kubectl delete namespace cityflow

namespace "cityflow" deleted

kubectl get all -A
kubectl get configmaps,secrets,pvc,jobs,cronjobs -A

Only the same pre-existing cluster infrastructure every module in this course has left in place - the control plane, coredns, kindnet, local-path-provisioner, and the Dashboard itself. Deleting the namespace removed the ConfigMap, the PVC (and its backing PersistentVolume), the Deployment and its ReplicaSet and pod, the Service, and the Job and its pod, in one command.

Remove the built images too, from both the host and the Kind node’s own containerd:

docker rmi cityflow-etl-k8s:1.1
docker exec datatweets-docker-k8s-control-plane crictl rmi docker.io/library/cityflow-etl-k8s:1.1

Untagged: cityflow-etl-k8s:1.1
Deleted: sha256:3dfac79749a17e248f59de121ac9f81112c991514633ab9e2f36683d7932dcf7
Deleted: docker.io/library/cityflow-etl-k8s:1.1

Practice Exercises#

Exercise 1: Reproduce the whole guided project#

Build and load cityflow-etl-k8s:1.1 yourself, apply all five manifests in the order this project used, and confirm your own run shows the identical real numbers: 77,530 buckets, 2,964,606 trips, $79,455,941.50 - checked both in the job’s log and by an independent psql query.

Exercise 2: Break one thing on purpose, then use Lesson 3’s tools to find it#

Introduce a real, single deliberate fault - an unreasonable resource request on the etl container, or a wrong DATA_URL in the ConfigMap - and use kubectl logs, describe, and events to diagnose it, without looking back at this lesson’s answer first.

Exercise 3: Verify against a different real number set#

Change the ConfigMap to point at the full multi-month scope Course 1’s capstone verified (240,917 buckets / 9,554,757 trips / $256,692,373.14) by running this Job three times, once per month, each writing into the same zone_hour_report table without truncating between runs (you’ll need to change write_report’s TRUNCATE to an UPSERT or remove it for a multi-run accumulation). Confirm your combined total matches Course 1’s capstone number.

Summary#

This project ran every mechanism Module 7 taught, together, from a completely clean namespace: a PersistentVolumeClaim and a Postgres Deployment and Service (Lesson 1’s translation), a ConfigMap-driven Job with measured resource limits (Lessons 2 and 4) gated by an initContainer readiness wait (Lesson 1), verified three independent ways - the job’s own logs, a direct psql query against the database it wrote to, and two real Kubernetes Dashboard screenshots. The real result, confirmed by all three: 77,530 zone-hour buckets, 2,964,606 trips kept, 18 quarantined, $79,455,941.50 total revenue, busiest zone-hour zone 161 at 2024-01-24T18 with 726 trips - the same real January 2024 answer Module 3’s original bare docker run, Module 4’s Compose stack, and this module’s own Lesson 1 have all already produced. kubectl delete namespace cityflow removed every trace of it in one command, confirmed against the pre-existing cluster and Dashboard infrastructure this course has run on since Module 5.

Key Concepts#

• A complete Kubernetes data pipeline - PVC, Deployment, Service, ConfigMap, and Job, brought up together in dependency order and torn down in one command.
• Three-way independent verification - logs, a direct database query, and a visual Dashboard check, none of them trusting the others.
• Composition over invention - every object and every value in this project’s manifests came from an earlier lesson; the guided project is entirely about assembling them correctly.
• The same real numbers, five ways - this exact January 2024 result has now been produced by a bare docker run (Module 3), a Compose stack (Module 4), a Kubernetes translation (Lesson 1), a packaged manifest (Lesson 4), and this guided project - one real answer, checked from every angle this course has built.

Why This Matters#

This is the actual shape a real Kubernetes data job takes in production: not one clever manifest, but several ordinary, individually-simple objects - storage, a database, configuration, resource limits, a run-to-completion workload - composed correctly and verified independently rather than trusted on faith. You’ve now watched CityFlow’s real ETL logic cross every layer this course has taught: a plain script, a Docker image, a Compose service, and finally a genuine Kubernetes Job, with the identical real answer at every single step. Module 8’s capstone takes this exact shape one step further, scheduling it to run automatically and repeatedly as a CronJob - the last mechanism this course has left to teach.

Continue Building Your Skills#

That completes Module 7: Running a Data Job on Kubernetes. You translated a real Compose stack object by object, measured the real difference between a memory limit that kills and a CPU limit that only slows, diagnosed a real crash and a real scheduling failure with the same three tools, and packaged CityFlow’s actual ETL job with a ConfigMap, measured resource limits, and real logging - then ran the whole thing together, from nothing, verified three independent ways.

Next comes Module 8: Capstone, where this exact job gets its final piece: a CronJob, so it runs automatically and repeatedly rather than once, with real Dashboard screenshots of it firing on its own schedule and its output checked, one more time, against the same real numbers this entire course has verified from every angle.
